1.1 Brief overview

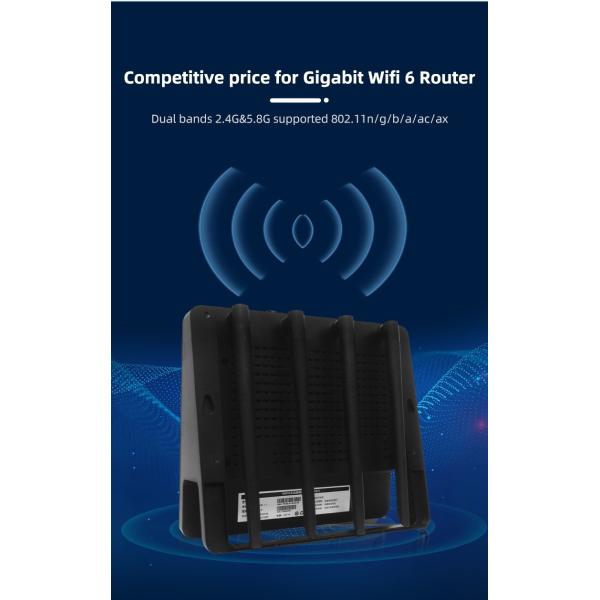

This document describes the electrical characteristics, RF performance, dimensions and application environment of z100ax. Under the introduction of this document, end users or developers can quickly understand the hardware functions of z100ax. Z100ax is a WiFi 6 home router, which can access the Internet through WAN port, and then share the Internet through wireless WiFi 6 and 1000Mbps wired LAN.

1.2 Reference standard

Relevant standards and specifications:

• USB3.0/USB2.0 Bus Standard
• IEEE802.11n/g/b/a/ac/ax
• IEEE802.3/802.3u/802.ab

3 Main features of the product

• Adopt mt7621a scheme, MIPs dual core CPU, main frequency up to 880mhz
• Using independent WiFi 6 chip, mt7905d and mt7975d, the speed is up to 1800mbps
• High speed 256MB DDR3 with 16MB NOR Flash
• 1wan + 2lan 1000m adaptive network ports(Auto MDI/MDIX)
• Support "one button brush mode", that is, long press the reset button to enter the rescue brush mode
• It supports USB3.0 interface and can be used to expand USB storage
• External high gain wifi antenna, wireless signal 360 degrees without dead angle

4 Hardware

4.1 Interface

4.2 Function of indicator light

4.3 Introduction of hardware platform

5 Description of power supply and power consumption

FAQ:

1. Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.

2. Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

3. Do you provide firmware customization?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to

4. Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
